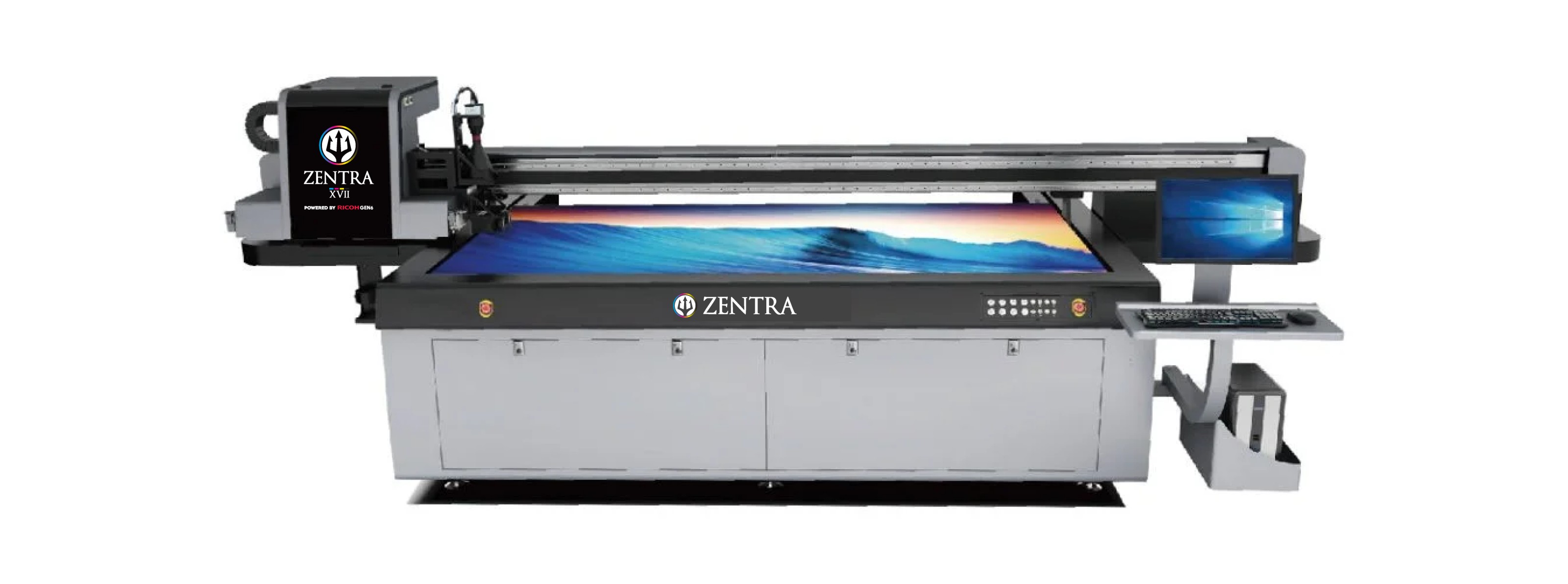

TheZentra XVII.A flatbed built on purpose.
An industrial UV LED flatbed engineered for signage, packaging, décor and hard industrial substrates. Ricoh Gen6 heads print sub-picolitre detail on glass, wood, metal, acrylic and ceramic — up to 100 mm thick.
- Heads
- Gen6
- Ricoh industrial
- Bed
- 2500×1300
- millimetres
- Warranty
- 24 mo
- global service
- Ricoh Gen6 · Industrial-grade printheads
- Up to 45 m² / hr production speed
- CMYK + White + Varnish in one pass
- 2500 × 1300 mm print bed
- Media thickness up to 100 mm
- 24-month machine warranty
- 24 × 7 remote support
- Ricoh Gen6 · Industrial-grade printheads
- Up to 45 m² / hr production speed
- CMYK + White + Varnish in one pass
- 2500 × 1300 mm print bed
- Media thickness up to 100 mm
- 24-month machine warranty
- 24 × 7 remote support
Every subsystem, on purpose.
Nine engineering decisions that separate the ZENTRA XVII from a generic flatbed — tuned for uptime, colour fidelity, and finishes that win repeat business.
- 01
Ricoh Gen6 Printheads
Industrial variable-drop heads from 7 pl for razor-sharp detail and rich shadow density.
Drop size · 7 pl - 02
45 m²/hr Throughput
Production mode built to turn a print floor into a profit engine — without sacrificing colour.
Duty cycle · 24/7 - 03
CMYK + White + Varnish
Multi-layer printing with opaque white and gloss varnish in a single, aligned pass.
One-pass registration - 04
Cool UV LED Curing
Cold-cure LED lamps print on heat-sensitive media — ACP, PVC, thin film — with zero warp.
Energy · −40% vs arc - 05
2500 × 1300 mm Bed
Large-format flatbed with vacuum zoning accepts substrates up to 100 mm thick, 80 kg.
Payload · 80 kg - 06
Anti-Collision Sensing
Laser height sensor and anti-collision guard keep heads safe on uneven and 3D substrates.
Tolerance · ±0.05 mm - 07
Neg-Ion Static Kill
Ionising bar neutralises static for dust-free prints on glass, acrylic and film.
Ionisation · dual bar - 08
24-Month Warranty
Global service network, remote diagnostics and a 24-month machine warranty as standard.
Uptime SLA · 99.2% - 09
Universal Substrate
Glass, wood, tile, acrylic, metal, leather, PVC, ceramic — one machine, endless markets.
Substrates · 12+
Every number, honestly published.
No hidden footnotes. The full technical sheet for the ZENTRA XVII is below — need a printed brochure or a custom head configuration? Our engineers will tailor a quote.
| 01Model | ZENTRA XVII |
|---|---|
| 02Print Technology | UV LED Curable Flatbed |
| 03Printheads | Ricoh Gen6 (industrial) |
| 04Head Configuration | 4 / 6 / 8 heads (configurable) |
| 05Ink Configuration | CMYK + White + Varnish |
| 06Max Print Area | 2500 × 1300 mm |
| 07Max Media Thickness | 100 mm |
| 08Max Media Weight | 80 kg |
| 09Resolution | 600 / 900 / 1200 / 1440 dpi |
| 10Production Speed | Up to 45 m² / hr |
| 11Ink Drop Size | Variable, from 7 pl |
| 12Curing System | High-power UV LED (water-cooled) |
| 13Vacuum Bed | Multi-zone with foot-pedal control |
| 14Height Sensor | Laser auto-height & anti-collision |
| 15Static Elimination | Ionising negative-ion bar |
| 16Interface | Gigabit Ethernet + USB 3.0 |
| 17RIP Software | Photoprint / Maintop / Onyx compatible |
| 18Power | AC 220 V ± 10%, 50/60 Hz, 6 kW |
| 19Operating Environment | 20–30 °C, 40–70% RH |
| 20Machine Dimensions | 4260 × 2260 × 1450 mm |
| 21Machine Weight | ≈ 1600 kg |
Buy a machine. Gain a partner.
When you invest in a ZENTRA XVII, you're backed by a service organisation obsessed with your uptime — from unboxing to year ten.
24-Month Machine Warranty
Bumper-to-bumper coverage on mechanical and electronic components.
6-Month Printhead Warranty
Ricoh Gen6 printheads covered under manufacturer warranty.
24 × 7 Remote Support
Diagnostics, RIP guidance and firmware updates over encrypted VPN.
On-Site Installation
Certified engineers install, calibrate and colour-profile at your facility.
Operator Training
3-day hands-on training and a lifetime access knowledge base.
48-Hour SLA
Guaranteed engineer callback within 48 hours for critical incidents.
See the ZENTRA XVII print live.
Bring us your substrate. We'll print your artwork on it — on camera, in our demo lab, or at your facility.
- Live demo with your own artwork
- Cost-per-print analysis for your job mix
- Financing & lease options walkthrough
